Roller Chain Couplings Chain
- group name
- Coupling Sprockets
- Min Order
- 100 piece
- model
- coupling chains
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T
- update time
- Thu, 25 Apr 2019 10:43:09 GMT
Packging & Delivery
-
Min Order100 piece
Briefing
Roller chain couplings consist of a pair of sprockets, a double row chains with case.
Detailed

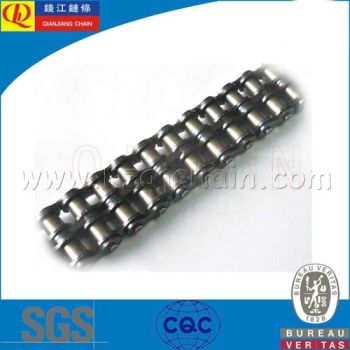

Roller Coupling Chains
Roller chain couplings very wide use in coupling application.
Zhijiang sprockets factory offer all series chains for roller couplings, range from 3012, 4012 ,to 12018 and 12022.
Regular delivery time 2weeks.
More coupling chains technical details see the chart below.
|
Chain No.
|
Pitch | Roller Diam. | Within Between inner plate |
PIN Diam.
|
Pin Length
|
Transverse Pitch
|
Ultimate tense strength | |
P | d1 max | b1 min | d2 max | L max | Lc max | Pt | Q Min | |
mm | mm | mm | mm | mm | mm | mm | kg/m | |
4012 | 12.70 | 7.95 | 7.85 | 3.96 | 31.0 | 32.2 | 14.38 | 0.16 |
4014 | 12.7 | 7.95 | 7.85 | 3.96 | 31.0 | 32.2 | 14.38 | 0.19 |
|
4016
|
12.70 | 7.95 | 7.85 |
3.96
|
31.0
|
32.2 |
14.38
|
0.21 |
|
5014
|
15.875 | 10.16 | 9.4 |
5.08
|
38.9
|
40.4 |
18.11
|
0.49 |
|
5016
|
15.875 | 10.16 | 9.4 |
5.08
|
38.9
|
40.4 |
18.11
|
0.56 |
5018 | 15.875 | 10.16 | 9.4 | 5.08 | 38.9 | 40.4 | 18.11 | 0.63 |
6018 | 19.05 | 11.91 | 12.57 | 5.94 | 48.8 | 50.5 | 22.78 | 1.00 |
6020 | 19.05 | 11.91 | 12.57 | 5.94 | 48.8 | 50.5 | 22.78 | 1.11 |
6022 | 19.05 | 11.91 | 12.57 | 5.94 | 48.8 | 50.5 | 22.78 | 1.22 |
8018 | 25.4 | 15.88 | 15.75 | 7.92 | 62.7 | 64.3 | 29.29 | 2.35 |
8020 | 25.4 | 11.91 | 15.75 | 7.92 | 62.7 | 64.3 | 29.29 | 2.62 |
8022 | 25.4 | 11.91 | 15.75 | 7.92 | 62.7 | 64.3 | 29.29 | 2.88 |
10018 | 31.75 | 19.05 | 18.90 | 9.53 | 76.4 | 76.4 | 35.76 | 4.95 |
10020 | 31.75 | 19.05 | 18.90 | 9.53 | 76.4 | 76.4 | 35.76 | 4.95 |
12018 | 38.1 | 22.23 | 25.22 | 11.1 | 95.8 | 95.8 | 45.44 | 8.14 |
12022 | 38.1 | 19.05 | 25.22 | 11.1 | 95.8 | 95.8 | 45.44 | 8.14 |
