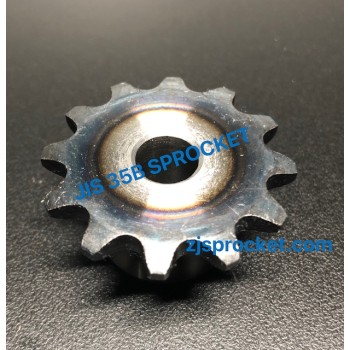

35B JIS Roller Chain Sprockets steel, C45 pilot bore

group name: JIS Roller Chain Sprockets

Min Order: 1 piece

model: 35B JIS Standard Roller Chain Sprocket

Delivery clauses under the trade mode: FOB, CIF

Acceptable payment methods: T/T

update time: Sun, 19 May 2019 22:43:39 GMT

contact supplier

Paramtents

Standard JIS Standard
Material C45 Steel
Pitch 9.525mm
Roller Diam. 5.08mm
Teeth Thickness 4.30mm
Bore pilot bore
Chain No. 35B
Teeth Harned Yes

Packging & Delivery

Min Order1 piece

Briefing

Japanese JIS Standard roller chain sprocket, 35B. Process follow KANA, OCM Standard Roller Chain Sprockets.

Detailed

35B JIS Standard Roller Chain Sprockets 9.525x5.08, Steel, C45

Japanese JIS Standard Sprockets

Pitch: 9.525mm

Roller Diam. : 5.08mm

Tooth Width:4.30mm

Type: B

Bore Tolerance: H8

Teeth Hardness:38~45HRC

Case Depth: >1.0mm

Chain No.	No. teeth	Outside Diam.	Hub Diam.	LTB	Weight(kg)
35B1	8	29.00	19.0	20.0	0.04
35B1	9	32.00	21.5	20.0	0.06
35B1	10	34.00	24.5	20.0	0.07
35B1	11	38.00	27.0	20.0	0.09
35B1	12	41.00	30.5	20.0	0.11
35B1	13	44.00	32.0	20.0	0.13
35B1	14	47.00	32.0	20.0	0.14
35B1	15	51.00	35.0	20.0	0.16
35B1	16	54.00	37.0	20.0	0.18
35B1	17	57.00	41.0	20.0	0.22
35B1	18	60.00	44.0	20.0	0.25
35B1	19	63.00	47.0	20.0	0.29
35B1	20	66.00	50.0	20.0	0.33
35B1	21	69.00	53.0	20.0	0.37
35B1	22	72.00	56.0	20.0	0.41
35B1	23	75.00	60.0	20.0	0.46
35B1	24	78.00	53.0	22.0	0.43
35B1	25	81.00	53.0	22.0	0.44
35B1	26	84.00	53.0	22.0	0.46
35B1	27	87.00	53.0	22.0	0.47
35B1	28	90.00	53.0	22.0	0.48
35B1	29	93.00	53.0	22.0	0.50
35B1	30	96.00	53.0	22.0	0.51
35B1	31	99.00	53.0	22.0	0.53
35B1	32	102.00	53.0	22.0	0.54
35B1	33	105.00	53.0	22.0	0.56
35B1	34	109.00	53.0	22.0	0.57
35B1	35	112.00	53.0	22.0	0.59
35B1	36	115.00	53.0	22.0	0.60
35B1	37	118.00	63.0	25.0	0.82
35B1	38	121.00	63.0	25.0	0.84
35B1	39	124.00	63.0	25.0	0.86
35B1	40	127.00	63.0	25.0	0.88
35B1	41	130.00	63.0	25.0	0.88
35B1	42	133.00	63.0	25.0	0.90
35B1	43	136.00	63.0	25.0	0.92
35B1	44	139.00	63.0	25.0	0.94
35B1	45	142.00	63.0	25.0	0.96
35B1	46	145.00	63.0	25.0	0.98
35B1	47	148.00	63.0	25.0	1.01
35B1	48	151.00	63.0	25.0	1.03
35B1	49	154.00	63.0	25.0	1.05
35B1	50	157.00	63.0	25.0	1.08
35B1	51	160.00	63.0	25.0	1.10
35B1	52	163.00	63.0	25.0	1.13
35B1	53	166.00	63.0	25.0	1.15
35B1	54	169.00	63.0	25.0	1.18
35B1	55	172.00	63.0	25.0	1.21
35B1	56	175.00	63.0	25.0	1.23
35B1	57	178.00	63.0	25.0	1.26
35B1	58	181.00	63.0	25.0	1.29
35B1	59	184.00	63.0	25.0	1.32
35B1	60	187.00	63.0	25.0	1.35
35B1	61	190.00	63.0	25.0	1.37
35B1	62	193.00	63.0	25.0	1.40
35B1	63	196.00	63.0	25.0	1.44
35B1	64	200.00	63.0	25.0	1.47
35B1	65	203.00	68.0	25.0	1.58
35B1	66	206.00	68.0	25.0	1.61
35B1	67	209.00	68.0	25.0	1.65
35B1	68	212.00	68.0	25.0	1.68
35B1	69	215.00	68.0	25.0	1.71
35B1	70	218.00	68.0	25.0	1.75
35B1	71	221.00	68.0	25.0	1.78
35B1	72	224.00	68.0	25.0	1.81
35B1	73	227.00	68.0	25.0	1.85
35B1	74	230.00	68.0	25.0	1.89
35B1	75	233.00	68.0	25.0	1.92
35B1	76	236.00	68.0	25.0	1.96
35B1	77	239.00	68.0	25.0	2.00
35B1	78	242.00	68.0	25.0	2.03
35B1	79	245.00	68.0	25.0	2.07
35B1	80	248.00	68.0	25.0	2.11
35B1	81	251.00	73.0	25.0	2.24
35B1	82	254.00	73.0	25.0	2.32
35B1	83	257.00	73.0	25.0	2.36
35B1	84	260.00	73.0	25.0	2.40
35B1	85	263.00	73.0	25.0	2.44
35B1	86	266.00	73.0	25.0	2.48
35B1	87	269.00	73.0	25.0	2.53
35B1	88	272.00	73.0	25.0	2.57
35B1	89	275.00	73.0	25.0	2.61
35B1	90	278.00	73.0	25.0	2.65
35B1	92	285.00	73.0	25.0	2.74
35B1	95	294.00	73.0	25.0	2.88
35B1	96	297.00	73.0	25.0	2.93
35B1	100	309.00	83.0	30.0	4.42
35B1	102	315.00	83.0	30.0	4.56
35B1	105	324.00	83.0	30.0	4.77
35B1	110	339.00	83.0	30.0	5.13
35B1	112	345.00	83.0	30.0	5.29
35B1	114	351.00	83.0	30.0	5.44
35B1	120	369.00	83.0	30.0	5.92
