KC Coupling Sprocket 8022
- group name
- Coupling Sprockets
- Min Order
- 1 piece
- model
- KC-8020
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T
- update time
- Sun, 09 Jun 2019 21:17:14 GMT
Paramtents
Catalog KC Coupling
PartNumber KC-8022
Material Steel C45
Pitch 25.4mm
Chain No. ASA 80B
Teeth 22
TeethHardness 45±3Hrc
Packging & Delivery
-
Min Order1 piece
Briefing

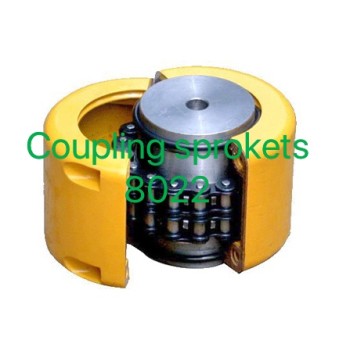

KC standard 8022 coupling sprockets, teeth harden, assemble with 8022 double row chain and couplings case
Detailed
KC Catalog Coupling Sprocket 8022
KC Catalog Chain&Sprocket Coupling
Chain coupling is composed by a duplex roller chain and two sprockets. The function of connection and detachment is done by the joint of chain. it has the characteristic of simplicity, high efficiency, easy-on and easy-offand nice out-look.
It also has a aluminium cover to prevent dust and prevent the lubricant and make the life of chain coupling longer life.
KC Coupling wide using in powder transmission equipment, such as pumps, gear boxes, mixiers, conveyors and some other industrial machines.
Zhijiang factory is offering all series couplings sprockets, chains and coupling cases, you can order sprockets, chains or case from us, or order whole sets of couplings assemble with 2pcs sprockets, one chain within couplings case.
Product Details
Part Number | Bore Range | Pilot | A | D | O | L | I | S |
B |
C |
Weight(Kg) |
KC-4012 | 12-22 | 12 | 77.0 | 33.0 | 62.0 | 79.4 | 36.0 | 7.4 | 72.0 | 14.4 | 0.80 |
KC-4014 | 12-28 | 12 | 84 | 43 | 69 | 79.4 | 36.0 | 7.4 | 75 | 14.4 | 1.1 |
KC-4016 | 14-32 | 14 | 92 | 48 | 77 | 87.4 | 40.0 | 7.4 | 75 | 14.4 | 1.4 |
KC-5014 | 15-35 | 14 | 101 | 53 | 86 | 99.7 | 45.0 | 9.7 | 85 | 18.1 | 2.2 |
KC-5016 | 16-40 | 16 | 111 | 60 | 93 | 99.7 | 45.0 | 9.7 | 85 | 18.1 | 2.7 |
KC-5018 | 16-45 | 16 | 122 | 70 | 106 | 99.7 | 45.0 | 9.7 | 85 | 18.1 | 3.8 |
KC-6018 | 20-56 | 20 | 142 | 85 | 127 | 123.5 | 56.0 | 11.5 | 105 | 22.8 | 6.2 |
KC-6020 | 20-60 | 20 | 158 | 98 | 139 | 123.5 | 56.0 | 11.5 |
105 |
22.8 |
7.8 |
KC-6022 | 20-71 | 20 | 168 | 110 | 151 | 123.5 | 56.0 | 11.5 |
117 |
22.8 |
10.4 |
KC-8018 | 20-80 | 20 | 190 | 110 | 169 | 141.2 | 63.0 | 15.2 |
129 |
29.3 |
12.7 |
KC-8020 | 20-90 | 20 | 210 | 121 | 185 | 145.2 | 65.0 | 15.2 | 137 | 29.3 | 16.0 |
KC-8022 | 20-100 | 20 | 226 | 140 | 202 | 157.2 | 71.0 | 15.2 | 137 | 29.3 | 202 |
KC-10020 | 25-110 | 25 | 281 | 160 | 233 | 178.8 | 80.0 | 18.8 | 153 | 35.8 | 33.0 |
KC-12018 | 35-125 | 35 | 307 | 170 | 256 | 202.7 | 90.0 | 22.7 | 181 | 45.4 | 47.0 |
KC-12022 | 35-140 | 35 | 357 | 210 | 304 | 222.7 | 100.0 | 22.7 | 181 | 45.4 | 72.0 |
KC-16018 | 63-160 | 53 | 375 | 228 | 340 | 254.1 | 112.0 | 30.1 | 240 | 58.5 | 108.0 |
KC-16022 | 80-200 | 70 | 440 | 279 | 405 | 310.1 | 140.0 | 30.1 | 245 | 58.5 | 187.0 |
